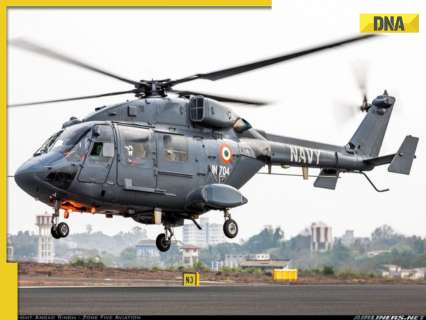

The Indian Army’s recent grounding of its Dhruv helicopter fleet following a tail drive shaft failure isn’t just another mechanical hiccup – it’s a stark reminder of how a small component can bring down a multi-crore aircraft and endanger lives.
On September 4, when helicopter IA-1134 experienced a tail drive shaft (TDS) bearing mount failure, it triggered an immediate fleet-wide safety inspection. While the helicopters aren’t completely grounded, each one must pass inspection before taking to the skies again. This incident adds to the Dhruv’s already troubled safety record, with over 20 crashes in 23 years of service.
The Critical Link That Keeps Helicopters Flying Straight
To understand why a tail drive shaft failure is so dangerous, imagine trying to open a tight jar lid. Your hand naturally wants to twist in the opposite direction to the force you’re applying. Similarly, when a helicopter’s main rotor spins clockwise, the entire aircraft wants to rotate counter-clockwise due to Newton’s third law of motion. The tail drive shaft is like a mechanical lifeline that connects the engine’s power to the tail rotor. This tail rotor, spinning furiously at the helicopter’s rear, pushes air sideways to counteract the main rotor’s torque and keep the aircraft stable. When the TDS fails, the pilot loses this crucial anti-torque system, and the helicopter can spin uncontrollably – often with fatal consequences.
Why Do Tail Drive Shafts Fail?
Based on helicopter incidents worldwide, TDS failures typically occur due to several factors:
Bearing and bushing wear: The small elastomeric (rubber-like) bushes and bearings that support the drive shaft are constantly under stress. Improper maintenance, inadequate lubrication, or using substandard materials can cause these components to deteriorate faster than expected. In the Dhruv’s case, the bearing mount at station #9A broke, suggesting either material fatigue or inadequate maintenance.
Vibration damage: Medium and high-frequency vibrations from engine and rotor systems can cause cracks to develop and rivets to work loose over time. Heat and torque due to seized bearings can also result in shaft failure.
Manufacturing defects: Poor quality control during production can introduce weak points in the shaft or its mounting systems. Despite using advanced manufacturing techniques like friction stir welding and composite materials, quality control issues have plagued the Dhruv program.
Maintenance lapses: Inadequate maintenance practices, including improper installation of components and failure to follow prescribed inspection schedules, have been blamed for several helicopter accidents worldwide.
Global Lessons: How Others Have Tackled Similar Problems
The helicopter industry worldwide has faced similar challenges, and their solutions offer valuable insights:
The United States: The Australian Transport Safety Bureau investigated a Bell 505 helicopter where a seized bearing caused tail rotor driveshaft failure. The key lesson was the importance of immediate action when pilots notice unusual sounds or vibrations. Bell Textron, the manufacturer, reported no previous instances of bearing failure in their fan shaft bearings, highlighting how rare but serious such failures can be.
Australia’s Response: When improper installation of tail rotor bearings caused a helicopter to nearly lose its tail rotor assembly in Hawaii, investigators found that all four structural attachment points had failed. The pilot’s quick decision to land immediately prevented the complete loss of the tail rotor, which would have made control impossible.
European Practices: The European Safety Promotion Network Rotorcraft maintains active discussion groups for sharing helicopter safety experiences, ensuring that lessons learned from one incident benefit the entire industry.
The Dhruv’s Unique Design Challenge
The Hidden Titanium Drum The Dhruv faces a particular challenge due to its unique design choices that set it apart from every other helicopter in its class worldwide. To understand this, we need to look at how helicopter controls normally work.
How Conventional Helicopters Work
In a typical helicopter, the pilot’s controls are connected to something called a swashplate – imagine it as a tilting disc that sits on top of the main rotor shaft. This swashplate consists of two main parts: a stationary plate connected to the pilot’s controls and a rotating plate that spins with the rotor. When the pilot moves the control stick forward, the swashplate tilts forward, changing the angle of the rotor blades as they spin around, which makes the helicopter move forward. The crucial components are the “pitch links” or “control rods” – thin metal rods that connect the swashplate to each rotor blade. These rods are fitted onto the swashplate and can be tilted to any side, and can also be raised and lowered, controlling the pitch of individual rotor blades. In conventional helicopters, these control rods are completely visible and accessible for daily inspection by maintenance crews.
The Dhruv’s Revolutionary – But Problematic – Design:
The ALH swashplate arrangement is unique because all the pitch change rods and swashplate are covered by a titanium drum also called the stub shaft. HAL claimed this was a breakthrough in design, because it protected the control rods from battle damage and reduced the height of the mast. Think of it this way: if a conventional helicopter’s control system is like the engine of a car with an open hood where you can see and inspect everything, the Dhruv’s system is like an engine completely sealed inside a titanium box. The MGB comprises a large diameter central collective gear that has a titanium stub-shaft directly bolted onto it. The large diameter was mostly dictated by the need to run the control rods inside the rotor shaft.
Why This Design Creates Safety Problems
This titanium enclosure creates a critical safety blind spot. The mandatory daily inspection of the control rods can never be done on the IDS (Integrated Dynamic System), so any incipient crack or defect remains hidden until a catastrophic failure occurs. It’s like having to drive a car without ever being able to check if the brake cables are fraying.
The Global Standard vs Dhruv’s Approach:
Today, on most modern aircraft the swashplate is above the transmission and the pushrods are visible outside the fuselage, making inspection straightforward. Some early designs did place swashplates underneath transmissions, but even then, accessibility for maintenance was considered. Traditional swashplates have been constructed from metallic materials, such as steel, aluminum, and titanium which provide high strength, but manufacturers worldwide prioritize inspection accessibility alongside protection.
The Hidden Consequences:
The shift to steel rods may have altered the stress dynamics. Aluminum, though weaker, flexes more, absorbing some cyclic load; steel, rigid and dense, transmits it directly to the swashplate. Add to this the titanium box encasing the assembly, which prevents regular visual or non-destructive testing. No other 5-ton helicopter in the world uses such a design. This design philosophy differs significantly from international practices where accessibility for inspection is prioritized alongside protection. The Dhruv’s approach of complete enclosure may offer theoretical battle damage protection, but it creates an inspection nightmare that has contributed to its safety challenges.
The Way Forward: Learning from Global Best Practices
The current crisis offers an opportunity for improvement: Enhanced Inspection Protocols: Following the global trend, India should implement more frequent and thorough inspections. Modern helicopters require rigorous inspection schedules, particularly for components operating in harsh environments like maritime operations.
Material Quality Assurance: The pressure to reduce costs should never come at the expense of using high-quality materials in critical components. Every bearing, bush, and coupling must meet the highest standards.
Data Sharing: HAL should share accident investigation data and serious defect reports across all operators – military and civilian. Transparency is crucial for identifying patterns and preventing future failures.
Regular Component Replacement: Rather than waiting for components to fail, implementing time-based replacement schedules for critical items like bearings and bushes can prevent catastrophic failures.
Pilot Training: Worldwide experience shows that pilots who recognize unusual sounds or vibrations and land immediately often prevent accidents. Enhanced training on recognizing early warning signs is essential.
The Bigger Picture
The Dhruv represents India’s ambitious entry into helicopter manufacturing. With over 400 units produced and more than 340,000 flying hours logged, it has proven its basic airworthiness. However, frequent crashes and maintenance issues highlight critical flaws in production and quality control that must be addressed. The current TDS issue, while serious, is not insurmountable. By learning from global best practices, improving quality control, and maintaining transparency in safety reporting, HAL can restore confidence in this indigenous platform. The stakes are high – not just for India’s defense capabilities, but for the lives of the brave pilots and crew who operate these machines. Ensuring accountability and rectifying these flaws is not just about improving a machine – it’s about protecting the lives of those who operate it. The September 4 incident should serve as a wake-up call. With proper attention to quality, maintenance, and transparency, the Dhruv can overcome its current challenges and fulfill its promise as a reliable, indigenous helicopter platform. The technology exists, the expertise is available – what’s needed now is the unwavering commitment to safety that the global helicopter industry demands.
